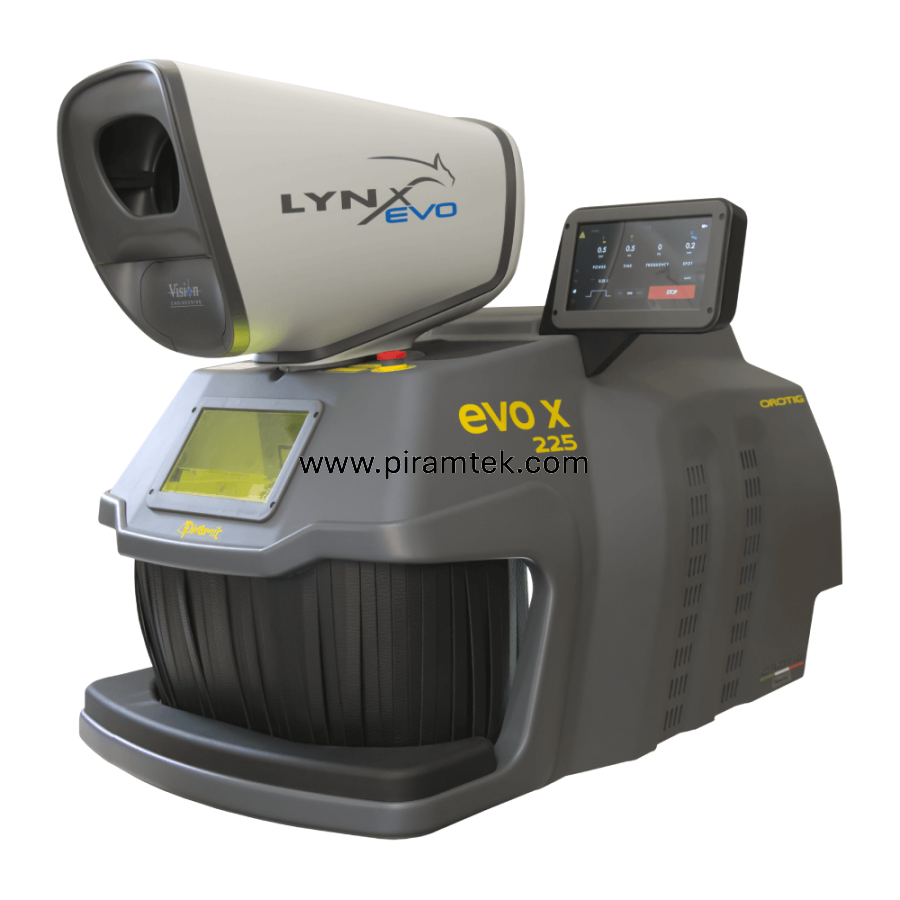

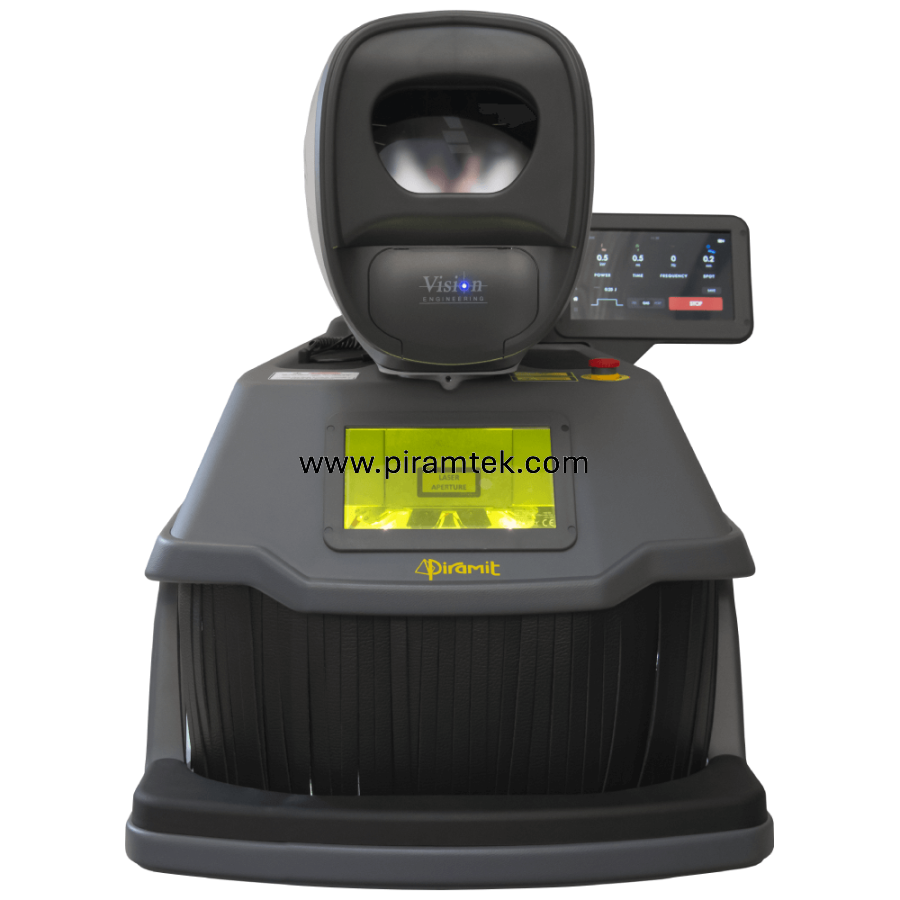

Orotig EVO X Cobra 225J is a desktop Nd:YAG (1064 nm) laser welding system designed for high stability and repeatable welding in jewelry and precision metal applications. With 225 Joule pulse energy (25 ms), 9 kW peak power, an adjustable 0.1–2.0 mm spot size, and a 0–40 Hz operating range, it offers a wide range of applications from fine detailing to serial repair work.
Orotig EVO X Cobra 225 Joule Laser Welding Machine is designed to accelerate crack repair, part joining, prong/setting work, and precision repair processes on gold, silver, and similar precious metals in jewelry workshops. Thanks to its desktop design, it occupies minimal space; nevertheless, it delivers a powerful welding character with 225 Joule pulse energy and 9 kW peak power.
High precision: Controlled welding in delicate areas with an adjustable 0.1–2.0 mm spot diameter range.
Powerful performance: 225J pulse energy at 25 ms and 9 kW peak power.
Operator comfort: Large welding chamber, ergonomic arm supports, and an adjustable lighting approach.
Ease of use / training: Features such as parameter monitoring via the interface, a training-oriented content approach, and process recording (package content may vary depending on model/version).
Remote support: Remote connectivity infrastructure for diagnostics and updates.
Cobra Viewing System: The LYNX EVO Cobra head viewing system provides an ergonomic working environment without causing eye strain.
Jewelers, repair workshops, and manufacturing businesses
Professionals who require both serial repair and precision craftsmanship
Teams seeking repeatable results in precious metal applications
| Technical Specification | Value |
|---|---|
| Power Supply | Single-phase, 115–230V ±10%, 50/60Hz, 1.8 kW |
| Laser Crystal | Nd:YAG @ 1064 nm |
| Pulse Energy & Duration | 225 J at 25 ms |
| Peak Power | 9 kW |
| Average Power | 90 W |
| Frequency | 0–40 Hz |
| Spot Diameter | 0.1 – 2.0 mm |
| Viewing System | LYNX Dynamic Scope™ viewing system |
| Control Access | 7-inch monitor + rotary control inside the welding chamber; next-generation touchscreen approach |
| Safety | Mechanical and electronic safety covers |
| Gas / Air Connection | Argon and compressed air connection |
| Lighting | Adjustable LED lighting system |
| Recording / Export | Video and image recording to USB and external export |
| Dimensions | 51 × 79 × 63 cm |
| Weight | 43 kg |
| Remote Connection | Remote connectivity for diagnostics and updates |
| Parameter Memory | Custom parameter saving option |
| Training | Video training library |
| Ergonomics | Large welding chamber, front arm supports |
