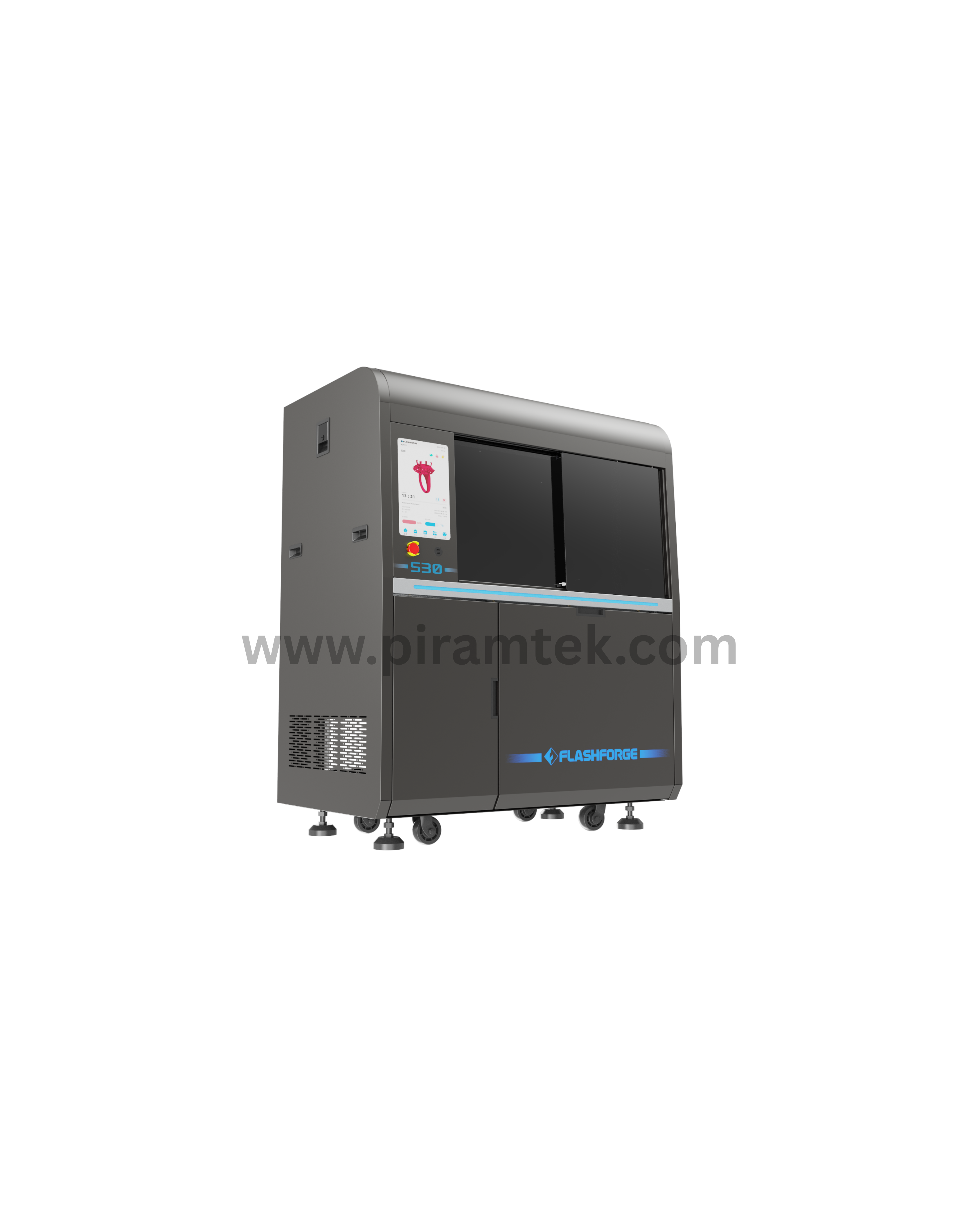

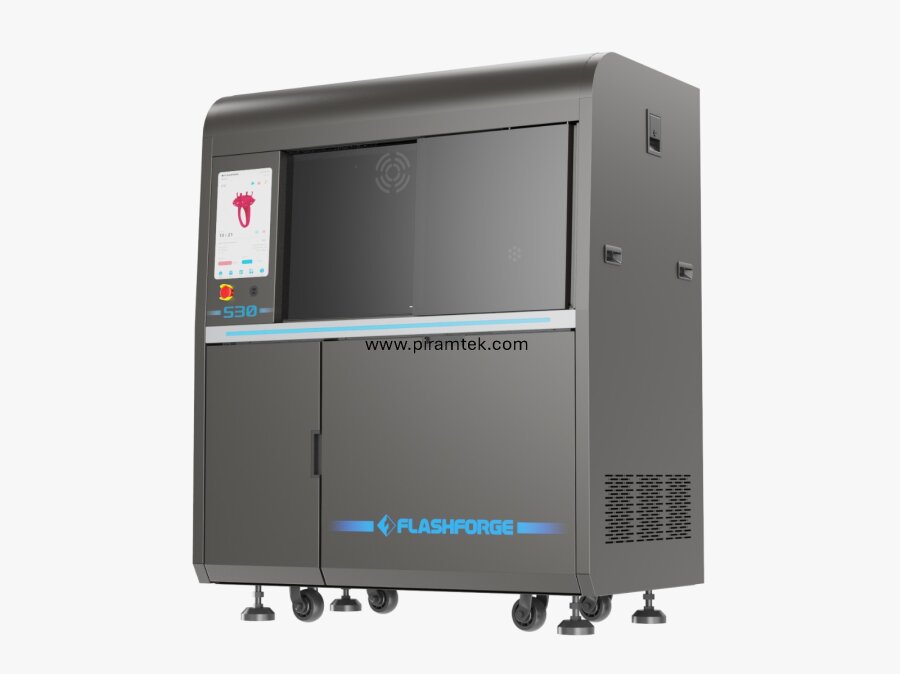

Flashforge 3D Printer WaxJet 530 – Triple Printhead Professional Wax-Based Jewelry Production Machine
Flashforge WaxJet 530 is a professional wax-based 3D printer designed for jewelry manufacturing. With triple printheads, 15-micron layer resolution, and advanced wax circulation, it delivers faster production, flawless surfaces, and reduced material waste. Featuring camera monitoring and email notifications, it ensures reliable and efficient high-volume production.
Flashforge WaxJet 530 – Professional Wax-Based Jewelry Production 3D Printer
The Flashforge WaxJet 530 sets a new standard in jewelry manufacturing with its advanced wax-based 3D printing technology. Engineered for precision, speed, and reliability, this printer is the ultimate solution for professionals seeking flawless surface quality and maximum efficiency. With triple printheads, a 15-micron layer resolution, and patented wax circulation technology, the WaxJet 530 minimizes downtime, reduces material waste, and ensures uninterrupted production.
Key Highlights
-
15 Micron Layer Resolution → Exceptional surface smoothness and intricate detailing
-
Triple Printhead System → Up to 25% faster production speed
-
Higher Build Height → 150 mm vs. 100 mm in the WaxJet 510 (50% larger build volume)
-
2200 Nozzles → Continuous output with minimal maintenance needs
-
Wax Circulation System → Prevents nozzle clogging and reduces material loss
-
Camera & Email Notifications → Remote production monitoring in real time
-
Quiet, Stable Operation → Smooth performance with minimal vibration
-
User-Friendly Interface → Easy material loading and streamlined operation
Advantages for Jewelry Manufacturers
-
High-Volume Production → Efficiently handle large-scale projects with precision
-
Superior Surface Quality → 15-micron resolution ensures flawless results
-
Material Efficiency → Reduced waste and lower operating costs
-
Uninterrupted Printing → Nozzle clogging eliminated thanks to continuous wax flow
-
Reliability in Every Print → Designed for consistent, repeatable performance
Technical Support & Training
The WaxJet 530 is backed by comprehensive after-sales service:
-
Installation & 2–3 Day Training covering material use, cleaning, maintenance, and productivity tips
-
1-Year Warranty including free technical support and spare parts
-
Lifetime Technical Consultation ensuring long-term value
-
Paid Service & Parts available after warranty period
Technical Specifications
| Feature | WaxJet 530 |
|---|---|
| Printing Technology | MultiJet Printing (MJP) – Wax-based |
| Printheads | 3 Piezoelectric Printheads |
| Layer Thickness | 15 microns |
| Nozzles | 2200 |
| Build Volume | 289 × 208 × 150 mm |
| Dimensional Accuracy | ±0.04 mm / 20 mm |
| Resolution | 2900 × 2900 × 2900 × 1700 dpi |
| Wax Circulation | Yes (prevents clogging & reduces waste) |
| Monitoring | Camera + Email Notifications |
| Power Supply | AC 220–240V, 50Hz, 4 KW |
| Machine Size | 1352 × 775 × 1600 mm |
| Weight | Net: 480 kg / Gross: 630 kg |
| Package Size | 1530 × 900 × 1837 mm |
| Software | WaxJetPrint |
| File Formats | .stl / .slc |
| Connectivity | Ethernet / USB |
| Hard Disk | 500 GB |
| OS Support | Windows 7 / 10 (64-bit) |
| Working Environment | 18–26 °C, 30–70% RH |
Why Choose the WaxJet 530?
-
Triple printhead efficiency with 2200 nozzles
-
Continuous wax circulation = no clogs, no downtime
-
Premium 15-micron detailing for luxury jewelry molds
-
Smart monitoring with camera + email alerts
-
Backed by training, warranty, and lifetime support
👉 Request a demo or quote today and experience the next generation of jewelry production.
Flashforge WaxJet 530 comes with a 1-year manufacturer warranty covering technical service and spare parts.
After the warranty period, extended paid support and spare parts supply are available.
Lifetime unlimited technical consultation is included with every purchase.
