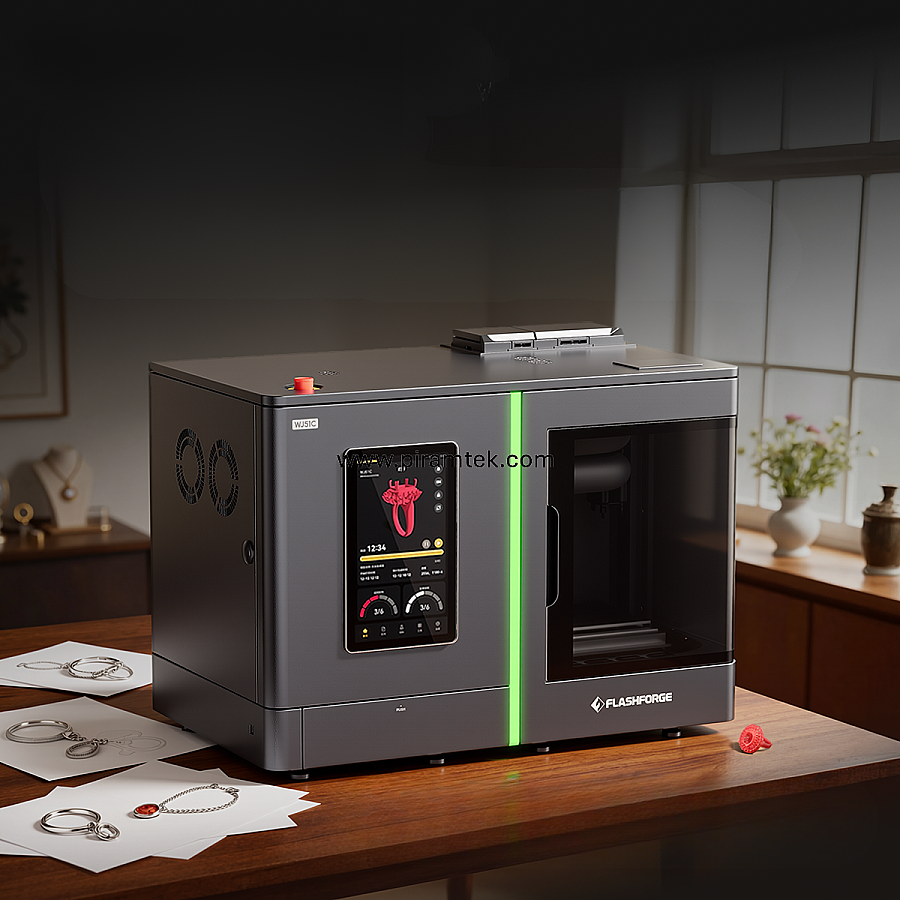

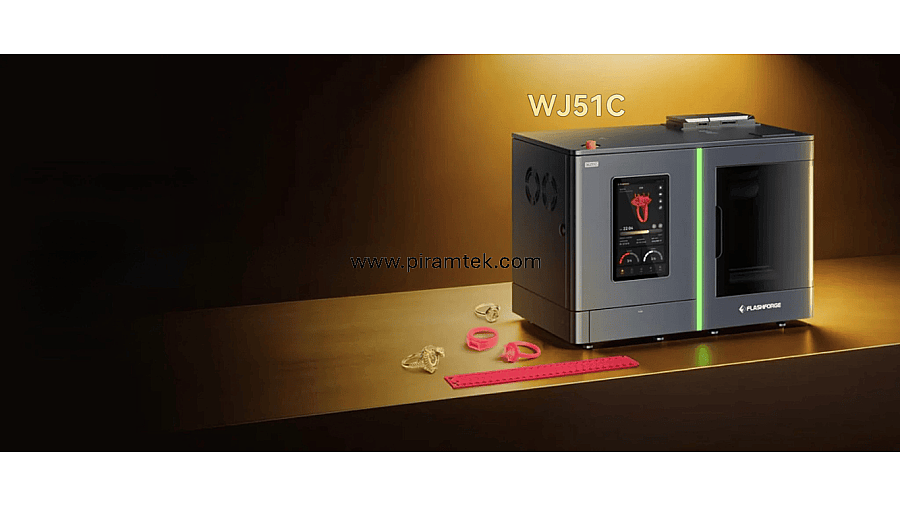

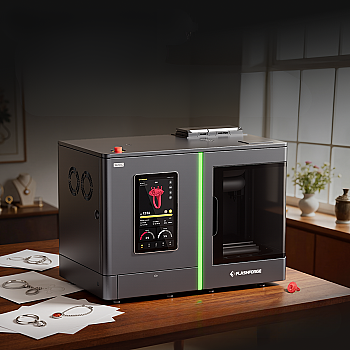

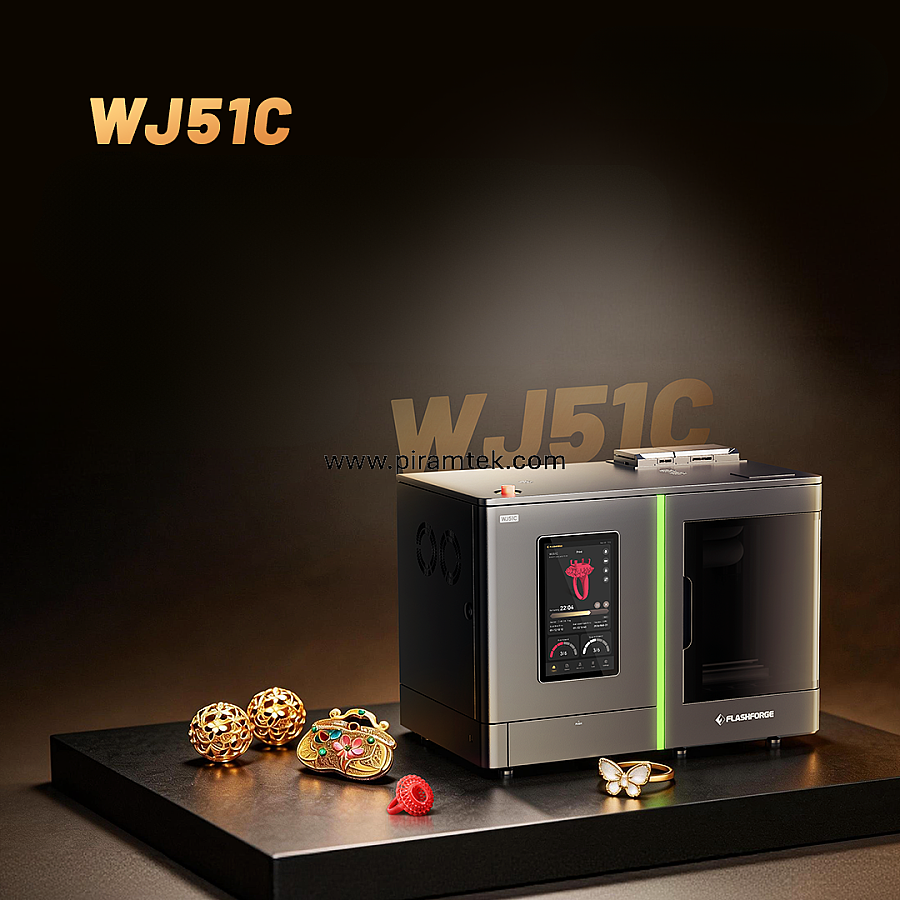

Flashforge WJ51C is a high-precision desktop wax 3D printer designed for jewelry manufacturing. Despite its compact desktop design, it delivers industrial-level production with low cost and minimal post-processing.
Flashforge WJ51C is a professional desktop wax 3D printer developed to meet the demands of high-precision, efficient, and sustainable jewelry production. Its compact desktop design saves space in workshops while delivering performance comparable to industrial systems.
With a resolution of 2900 × 2900 × 1700 DPI and a layer thickness of 15 microns, WJ51C produces extremely fine details with exceptional surface quality. This high precision significantly reduces the need for polishing and post-processing.
The system offers over 55% material utilization efficiency, optimizing wax consumption and lowering production costs. This makes it an ideal solution for both small workshops and high-volume production environments.
Designed for continuous operation, WJ51C provides stable 24/7 performance, ensuring reliability for businesses with ongoing production needs.
Its specially developed wax material structure reduces casting defects and improves final output quality, delivering cleaner and more accurate results.
With compact dimensions (865 × 510 × 654 mm), the WJ51C offers a strong advantage over bulky industrial machines while maintaining high production capacity.
Flashforge WJ51C combines precision, efficiency, and reliability, making it a powerful solution for modern jewelry manufacturing.
| Feature | Value |
|---|---|
| Printing Technology | Multi Jet Printing (MJP) |
| Build Volume | 235 × 138 × 100 mm |
| Resolution | 2900 × 2900 × 1700 DPI |
| Layer Thickness | 15 µm |
| Dimensional Accuracy | ±0.04 mm / 20 mm |
| Material Utilization | ≥ 57% |
| Print Speed | Single: 7 mm/h – Dual: 3.2 mm/h |
| Software | WaxJetPrint |
| Supported Formats | STL, SLC |
| Connectivity | Ethernet, USB, Wi-Fi |
| Operating System | Windows 10 / 11 (64-bit) |
| Power Supply | AC 100–250V, 50–60Hz, 2.2 kW |
| Operating Environment | 18–26°C / 30–70% humidity |
| Machine Dimensions | 865 × 510 × 654 mm |
| Machine Weight | 115 kg |
| Package Dimensions | 1020 × 660 × 905 mm |
| Package Weight | 140 kg |
MATERIAL SPECIFICATIONS
| Feature | Model Wax | Support Wax |
|---|---|---|
| Material Type | Part Material | Support Material |
| Weight | 72 g/block | 180 g/block |
| Density | 0.79 g/cm³ | 0.79 g/cm³ |
| Melting Point | 68°C | 55°C |
| Usage | High-precision models | Easily removable support |
