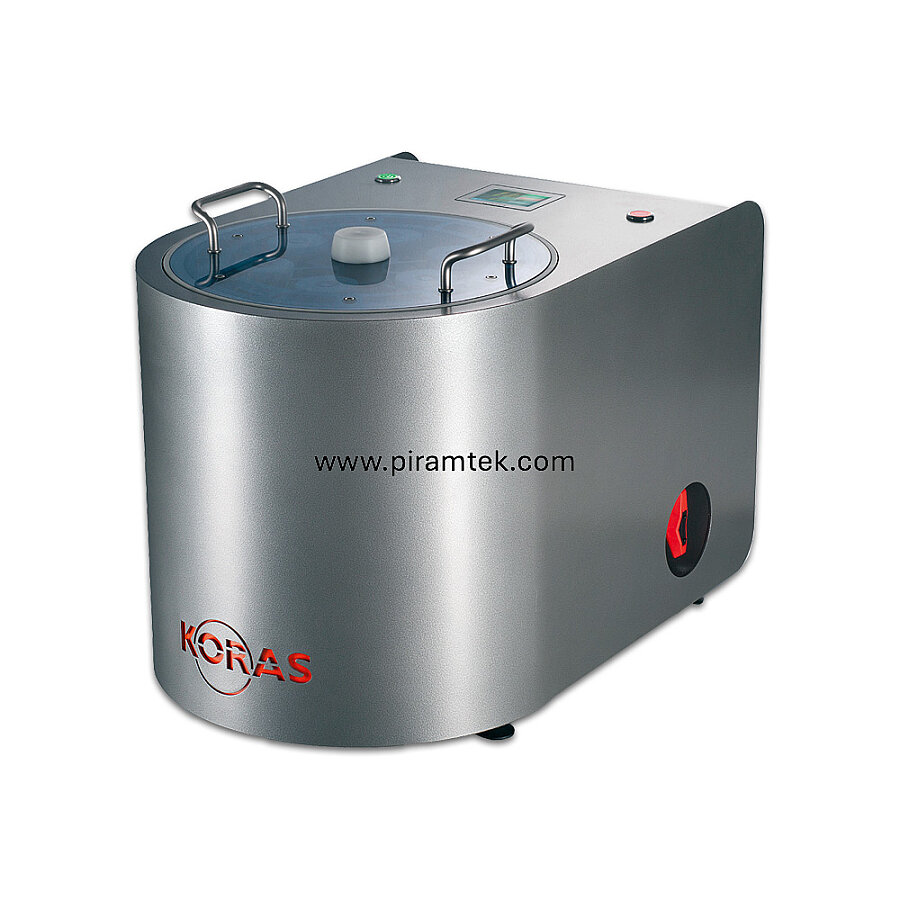

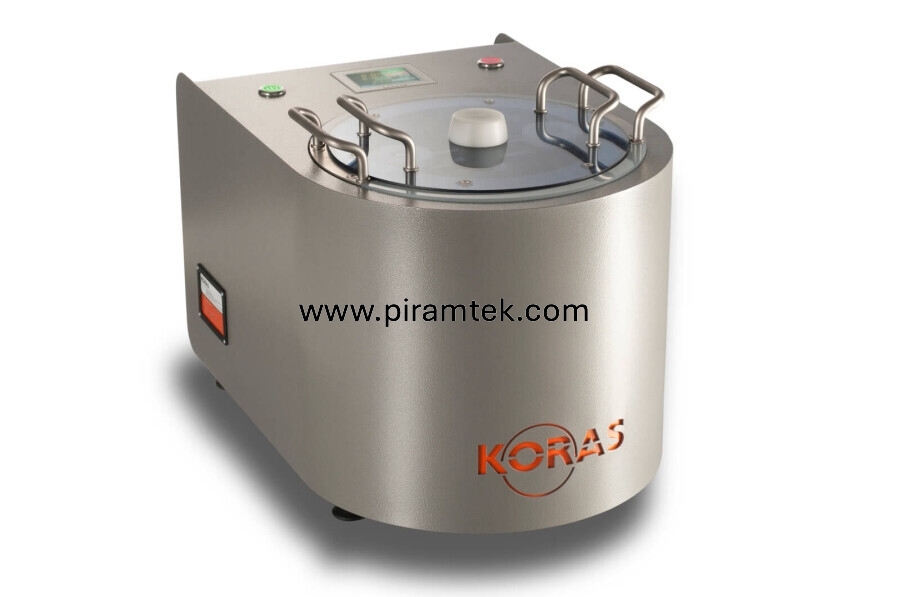

KORAS AquaPol® 100 Electro-Polishing System

KORAS AquaPol® 100 is a compact electro-polishing system developed for professional surface finishing applications in the jewelry and precious metal industries. Its electro-polishing technology enables precise and controlled surface treatment, helping to achieve smooth and high-quality finishes.

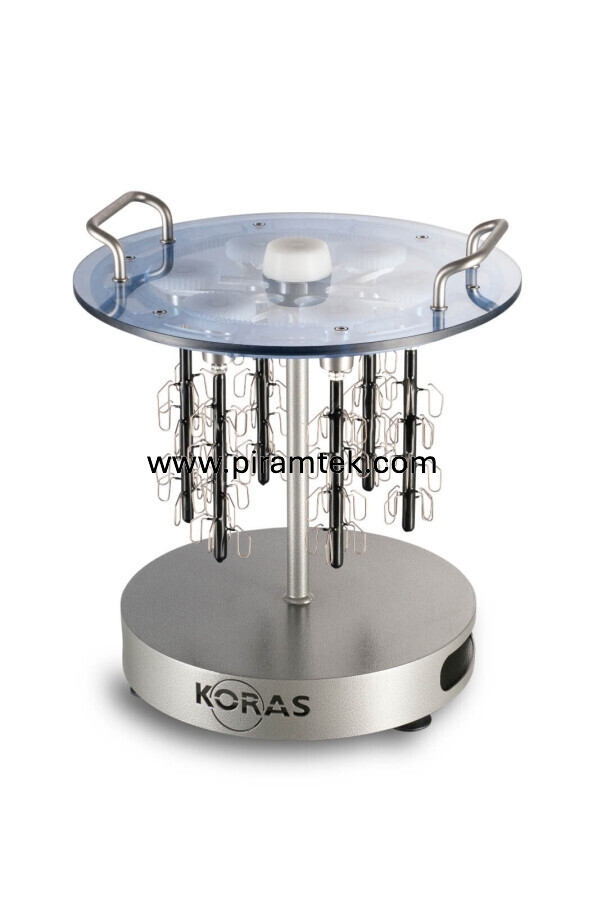

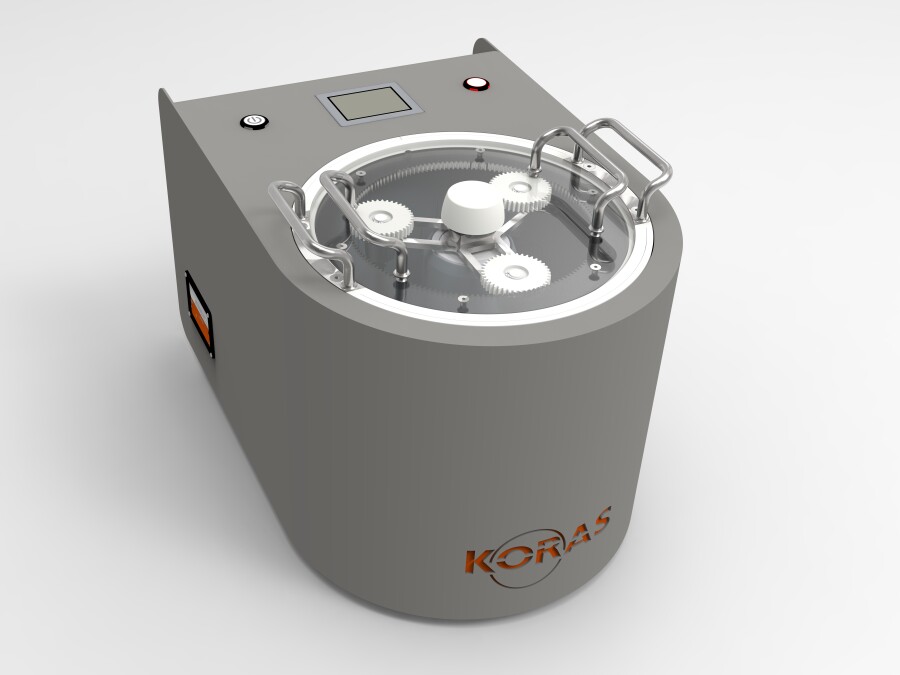

Thanks to its compact design and internally operating rotor, AquaPol® 100 requires minimal production space while providing a fast and economical polishing process. The system is suitable for processing gold, silver, brass, bronze, and stainless steel components.

Fast and High-Capacity Polishing

AquaPol® 100 provides a processing capacity of up to 96 rings or pieces per cycle. Depending on the characteristics of the workpieces, the typical processing time is approximately 15–20 minutes.

This capacity helps accelerate polishing operations, particularly in jewelry workshops and production facilities with high-volume manufacturing requirements.

One System for Gold and Silver

AquaPol® 100 enables both gold and silver pieces to be polished using the same machine.

Thanks to the process liquid developed by KORAS, one liquid and one processing step can be used for both gold and silver polishing. The system supports 8–21 karat yellow, red, and white gold alloys.

Suitable for Different Types of Jewelry

AquaPol® 100 is not limited to polishing rings and can also be used for jewelry pieces with different shapes and geometries.

The system is suitable for processing rings, bracelets, necklaces, and chains, allowing different types of jewelry to be finished using a single system.

Precious Metal Recovery

Controlling precious metal losses during polishing is an important factor in jewelry manufacturing, particularly when processing gold and other high-value materials.

KORAS states that the precious metal removed during the AquaPol® polishing process can be 100% recovered. This provides an important advantage, especially for high-volume gold and silver production.

KORAS Electrolyte Technology

The process liquid used in electro-polishing plays an important role in overall process performance and finishing quality.

The electrolyte developed by KORAS for AquaPol® systems is designed with purity, mixing ratio, effectiveness, and long service life in mind. KORAS also states that the process liquids used with AquaPol® 100 are not classified as dangerous goods.

Advantages of KORAS AquaPol® 100

• Suitable for gold, silver, brass, bronze, and stainless steel
• Capacity of up to 96 rings per cycle
• Approximately 15–20 minutes processing time
• One machine for gold and silver
• One process liquid and one processing step for gold and silver
• Suitable for 8–21 karat gold
• Suitable for yellow, red, and white gold
• Suitable for rings, bracelets, necklaces, and chains
• 100% precious metal recovery
• Process liquids not classified as dangerous goods
• Compact and space-saving design
• Suitable for professional and high-volume jewelry production

Technical Specifications



Model	AquaPol® 100
Capacity	96 Rings
Power Supply	230 V / 50–60 Hz
Rectifier	20 A DC / 30 V
Dimensions (L × W × H)	730 × 470 × 520 mm
Bath Volume	20 L
Weight	58.3 kg
