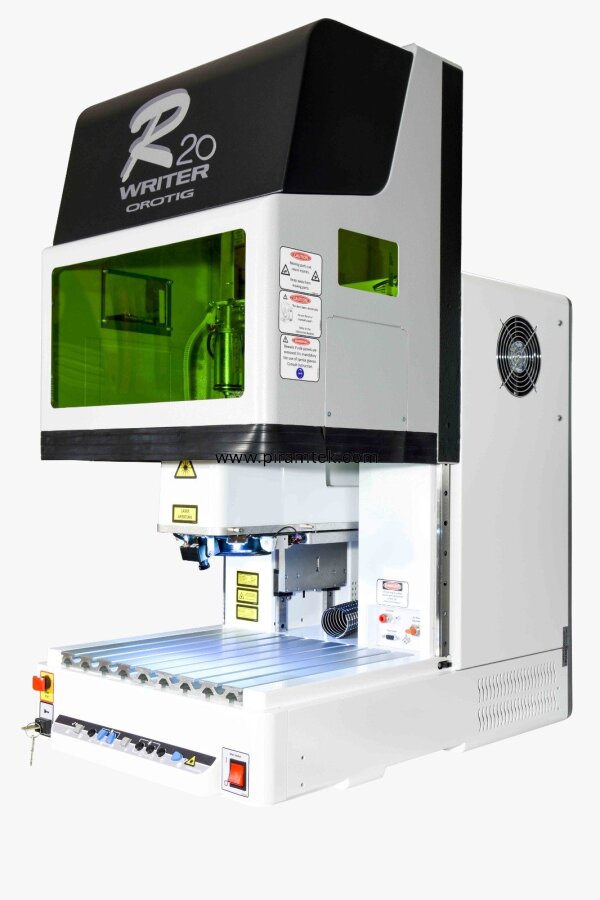

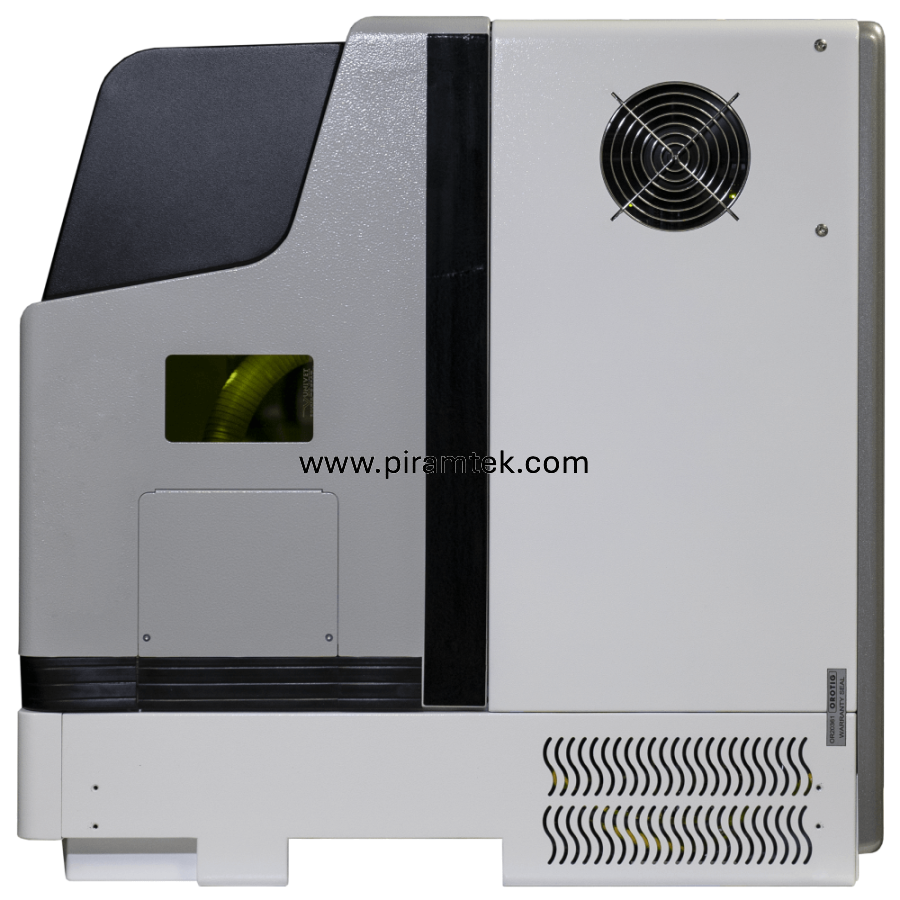

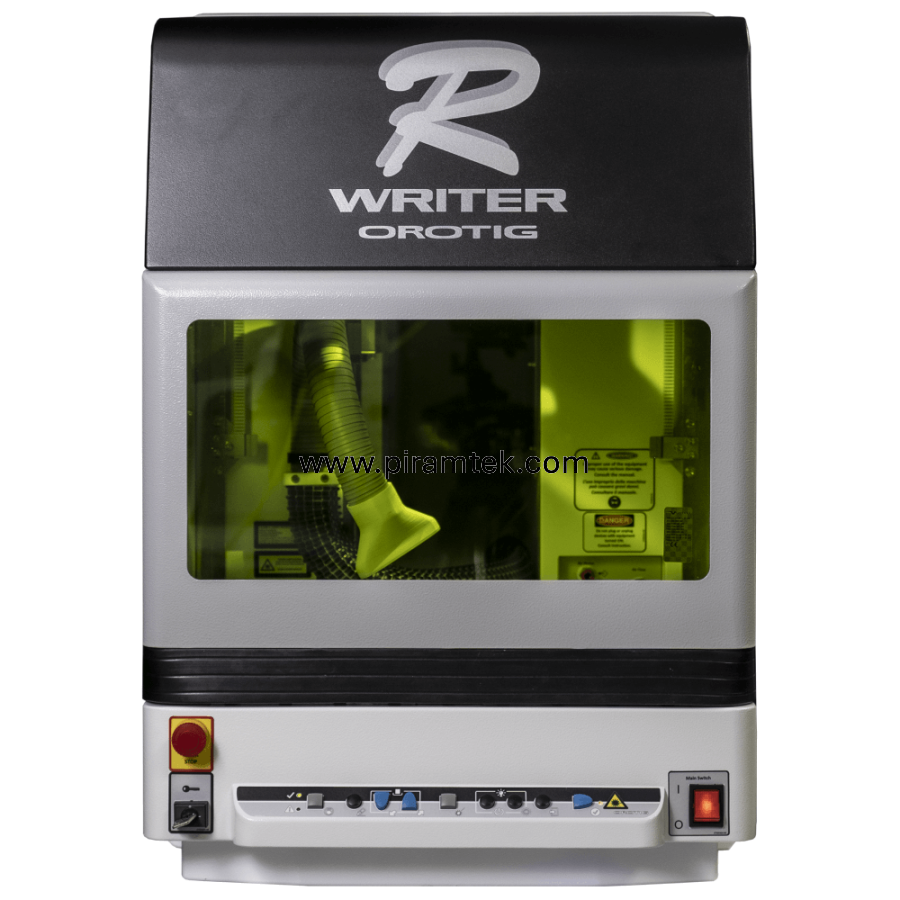

The Orotig 20W Enclosed Laser Marking Machine is a 20W fiber laser writing/marking solution suitable for mass production in jewelry and precision metal craftsmanship, providing an organized working area with its enclosed structure. With a wavelength of 1060–1085 nm, a frequency range of 20–60 kHz, and a pulse duration of 120 ns, it targets clear results in logo, text, serial number, pattern, and personalization applications.
The Orotig 20 Watt Enclosed Laser Marking Machine is positioned for workshops aiming for high readability marking on metal surfaces with its fiber (Yb) laser source. The enclosed form facilitates more organized use of the working area and streamlines the operational flow.
Inner/outer ring text, date, name, letter and symbol applications
Logo printing, serial number, barcode/QR-type traceability markings
Jobs aimed at precise marking on precious metals such as gold, silver and platinum
The 20–60 kHz frequency range provides flexibility for different marking characteristics on different surfaces.
The 120 ns pulse duration and M² < 1.8 beam quality provide advantages in line sharpness and detail control.
With a maximum power consumption of 750 W, planning within workshop electrical infrastructure becomes easier.
Jewelry workshops, production workshops
Businesses providing personalization services (name/date/logo)
Companies that require part marking for traceability in serial production
| Specification | Value |
|---|---|
| Laser Source Type | Multi-Diode Pumped Fiber (Yb) LASER (Class 4) |
| Wavelength | 1060 – 1085 nm |
| Laser Pulse Power | 20 W |
| Pulse Duration | 120 ns |
| M² Value | < 1.8 |
| Frequency Range | 20 – 60 kHz |
| Pulse Energy | 1 mJ @ 20 kHz |
| Power Supply | Single-phase, 230 Vac, 50/60 Hz, 6 A |
| Maximum Power Consumption | 750 W |
| Dimensions (W × D × H) | 45 × 71 × 65 / 93 cm |
| Weight | 67 kg |
