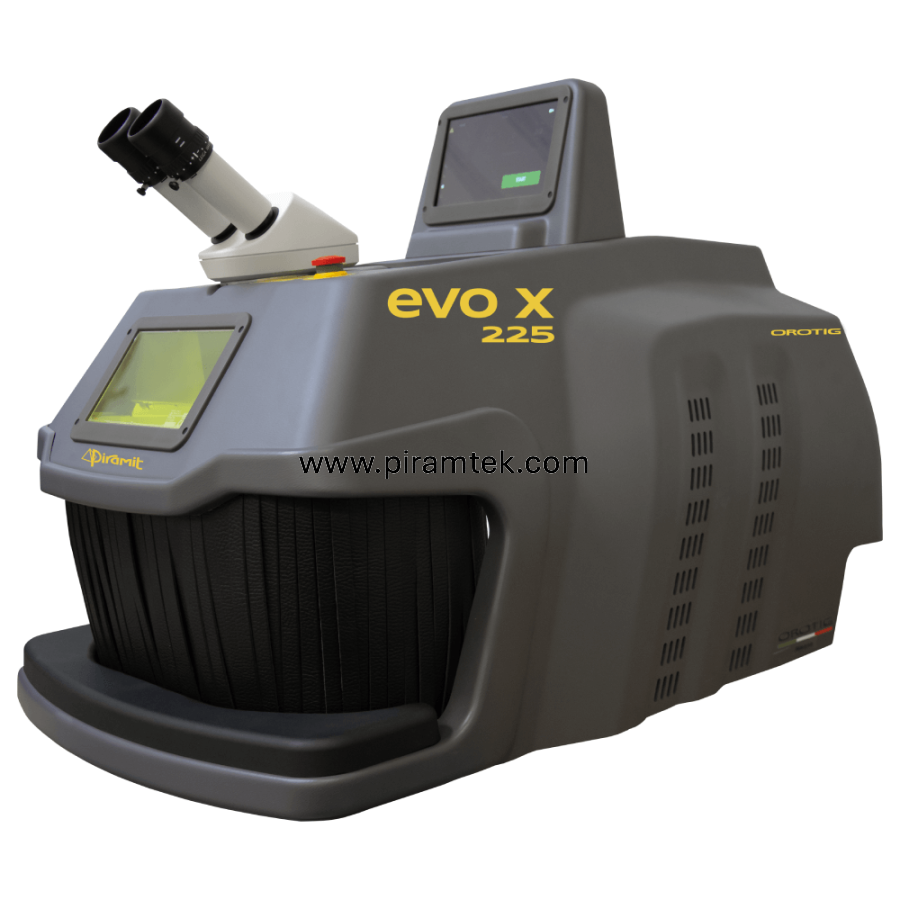

The Orotig EVO X 225 Joule Leica is a compact desktop laser welding machine designed for precision jewelry manufacturing and repair. With 225 Joule pulse energy, 0.1–2.0 mm adjustable spot size, and a Leica stereo microscope, it delivers controlled, high-quality welds with minimal heat impact.
The Orotig 225 Joule EVO X Leica is a powerful and precisely controlled laser welding solution designed for jewelry manufacturing and fine metalworking applications such as ring resizing, chain welding, clasp and prong repair, component joining, and micro-level corrections. Its Nd:YAG 1064 nm laser platform, 225 J / 25 ms pulse parameters, and 9 kW peak power are engineered to balance welding speed and penetration depth.
Clear Control in Fine Craftsmanship: 0.1–2.0 mm Spot
The ability to adjust the spot diameter within the 0.1–2.0 mm range provides controlled heat input for micro welding, filler welding, spot repairs, and detailed operations. This is a significant advantage for workshops aiming to work with minimal deformation in sensitive areas.
User Comfort: Wide Viewing Area, Adjustable LED, Ergonomic Design
The EVO X family features a compact and durable body structure, a wide viewing window, and a welding chamber with adjustable LED illumination to enhance operator comfort. The usable welding chamber volume is specified as 27.2 L, allowing comfortable handling of various part geometries.
Smart Features: Camera, Connectivity
According to technical documentation, the machine includes an integrated camera for on-screen monitoring and recording of the welding process, as well as connectivity and Wi-Fi capabilities for remote support and software updates.
Cooling: Liquid Cooling + Advanced Ventilation System
The 4 L liquid cooling system combined with forced ventilation is designed to support stable performance during intensive workshop use.
| Feature | Specification |
|---|---|
| Power Supply | Single Phase, 115–230 VAC ±10%, 50/60 Hz |
| Maximum Power Consumption | 1.8 kW |
| Laser Type | Nd:YAG – 1064 nm |
| Crystal Diameter | 7 mm |
| Maximum Pulse Energy | 225 Joule (at 25 ms) |
| Peak Power | 9 kW |
| Mean Power | 90 W |
| Frequency Range | 0 – 40 Hz |
| Pulse Energy at 1 ms | 9 Joule |
| Spot Diameter | 0.1 – 2.0 mm |
| Control Interface | 7” Capacitive Touchscreen + Rotary Switch |
| Microscope | Leica Stereo Microscope, 45°, 10×, crosshair targeting |
| Integrated Camera | Live monitoring, recording and playback |
| Cooling System | Liquid cooling (4 L) + forced air ventilation |
| Connectivity | Wi-Fi, telemetry, remote support |
| Working Chamber Volume | 27.2 L |
| Dimensions (W × D × H) | 51 × 79 × 55 cm |
| Weight | 43 kg |
| Hygiene System | IUVAPS™ ambient sanitization system |
