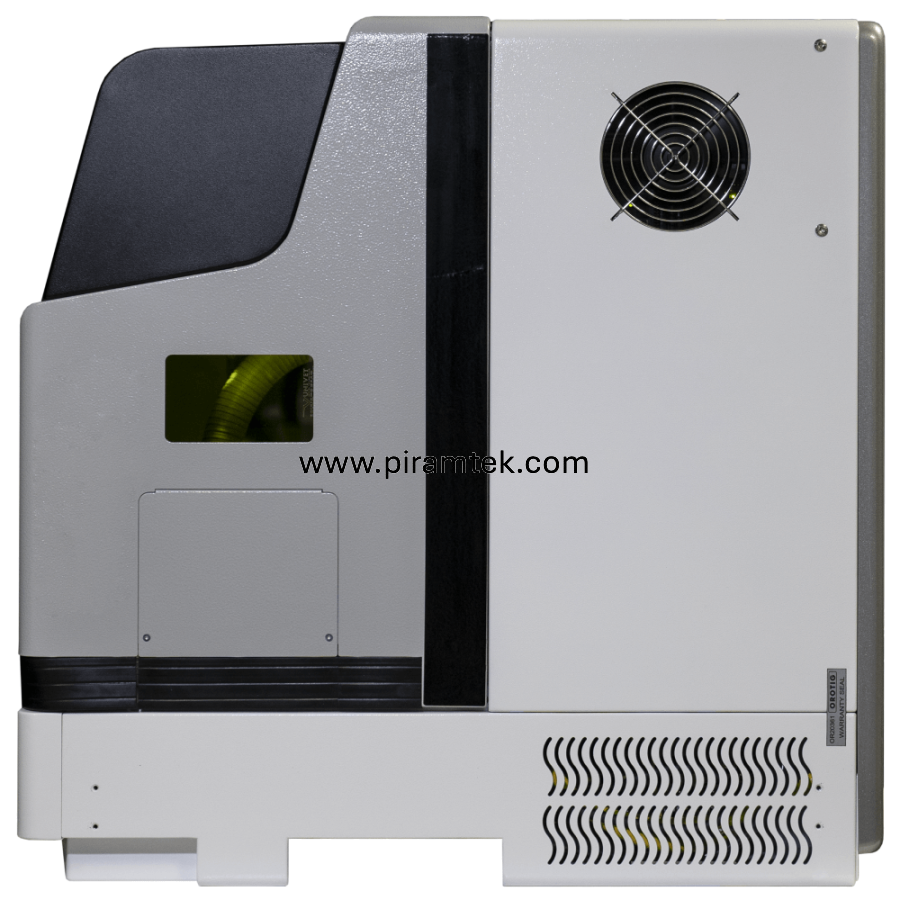

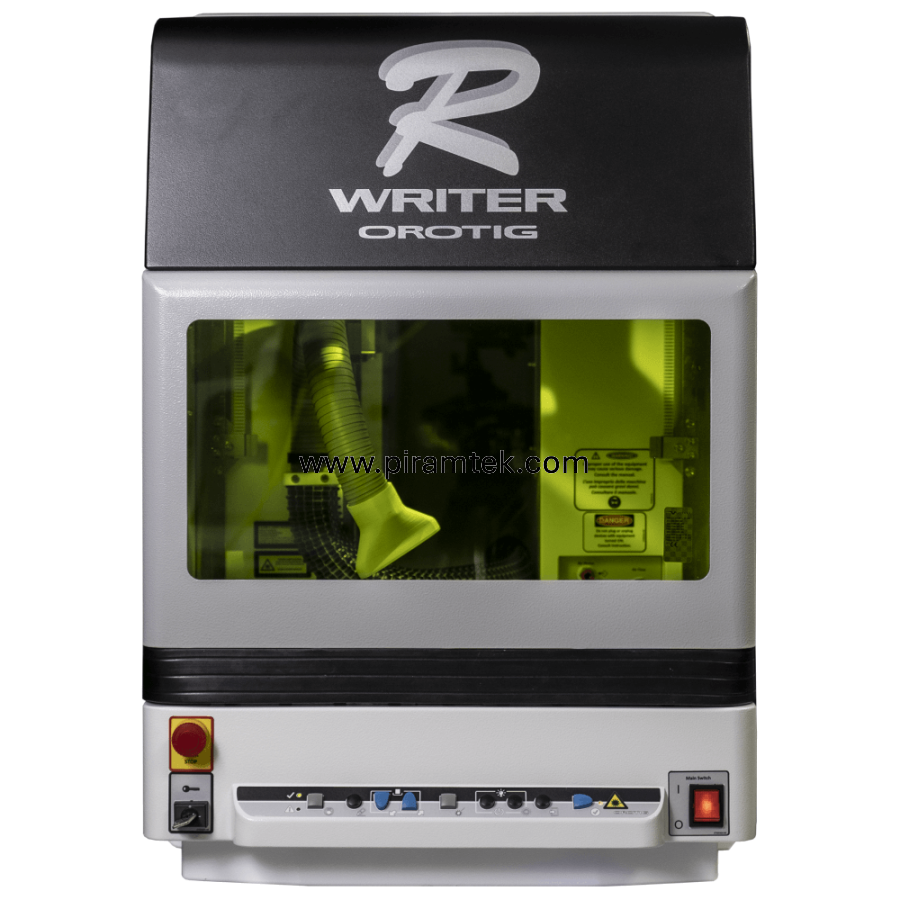

Orotig 30 Watt Enclosed Laser Writing Machine offers clear, permanent, and controlled laser writing and marking processes on metal surfaces thanks to its Multi-Diode Pumped Fiber (Yb) laser source. Its enclosed structure, compact dimensions, and stable operating characteristics make it suitable for professional workshop use.
The Orotig 30 Watt Enclosed Laser Writing Machine is a professional system equipped with fiber laser technology developed for laser writing and marking applications. Operating within the 1060–1085 nm wavelength range, the Multi-Diode Pumped Fiber (Yb) laser source provides high-contrast and permanent marking on metal surfaces.
With its 30–60 kHz frequency range and controlled pulse structure, it delivers stable performance in applications requiring precise workmanship. Its enclosed design provides an organized and safe working environment. Its compact dimensions allow it to be comfortably positioned in limited spaces.
Orotig laser systems are designed based on production continuity and technical stability. It is an ideal solution for businesses that require laser writing in jewelry, industrial marking, and metal processing applications.
Laser writing and marking on metal surfaces
Jewelry and precision metal applications
Industrial part identification
Serial production marking processes
| Feature | Value |
|---|---|
| Laser Source Type | Multi-Diode Pumped Fiber (Yb) LASER (Class 4) |
| Wavelength | 1060 ÷ 1085 nm |
| Laser Pulse Power | 30 W |
| Pulse Time | 200 ns |
| M² | < 1.8 |
| Frequency | 30 ÷ 60 kHz |
| Pulse Energy | 1 mJ @ 30 kHz |
| Power Supply | 1-ph 230Vac ±10% / 50–60 Hz / 6A |
| Maximum Consumption | 750 W |
| Dimensions | 45 × 71 × 65 / 93 cm |
| Weight | 72 kg |
