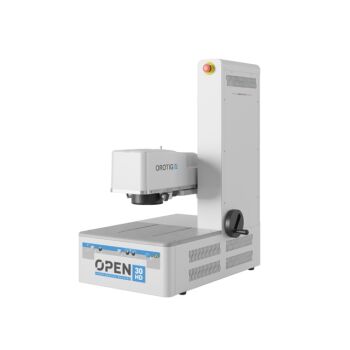

The Orotig 30 Watt Open Laser Marking Machine provides clear, permanent, and repeatable marking on metal surfaces with fiber (Yb) laser technology. With a wavelength of 1060–1085 nm, a 35 μm spot diameter, and a 30–60 kHz operating range, it targets high precision in logo, text, serial number, and pattern applications.
The Orotig 30W open laser marking machine is a laser marking solution developed for text, logo, pattern, and identification (serial number / barcode-type) applications on metal surfaces using a fiber (Yb) laser source. It is positioned for businesses that require fast workflow and consistent results in jewelry workshops, production environments, and technical labeling needs.
Jewelry & precious metal applications: Text/logo/pattern marking on surfaces such as gold, silver, platinum, etc.
Product identification: Serial numbers, product codes, company logos, batch information
Workshop / production labeling: Permanent marking on plates, tags, and accessory parts
Gift & personalization: Personal marking such as names, dates, and short messages
30W laser power provides advantages in marking operations that target clear lines, controlled processing, and compatibility with production pace. Fiber laser architecture is a widely used technology for permanent and abrasion-resistant markings on metal.
(The manufacturer positions its laser marking solutions in this segment.)
Focused marking operation on metal surfaces with a wavelength of 1060–1085 nm
Precision target in fine details with a 35 μm spot diameter
Control across different work scenarios with a 30–60 kHz frequency range
Workshop-friendly form with compact dimensions
| Feature | Value |
|---|---|
| Laser Source Type | Multi-Diode Pumped Fiber (Yb) LASER (Class 4) |
| Wavelength | 1060 – 1085 nm |
| Laser Pulse Power | 30 W |
| Pulse Duration | 200 ns |
| Pulse Energy | 1 mJ @ 30 kHz |
| M² Value | < 1.8 |
| Frequency | 30 – 60 kHz |
| Spot Diameter | 35 μm |
| Power Supply | 1-ph, 100/240 Vac, 50/60 Hz, 6A |
| Maximum Power Consumption | 450 W Main / 10 A Aux. |
| Dimensions | 33 × 52.7 × 64.5 cm |
| Weight | 34 kg |
