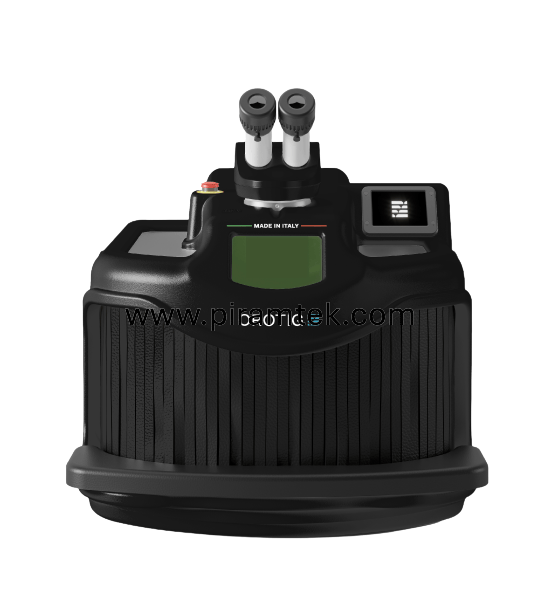

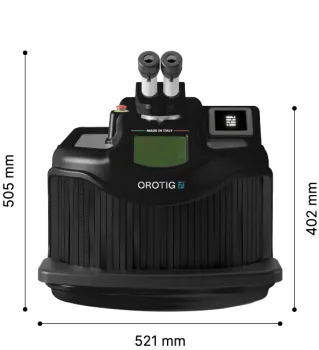

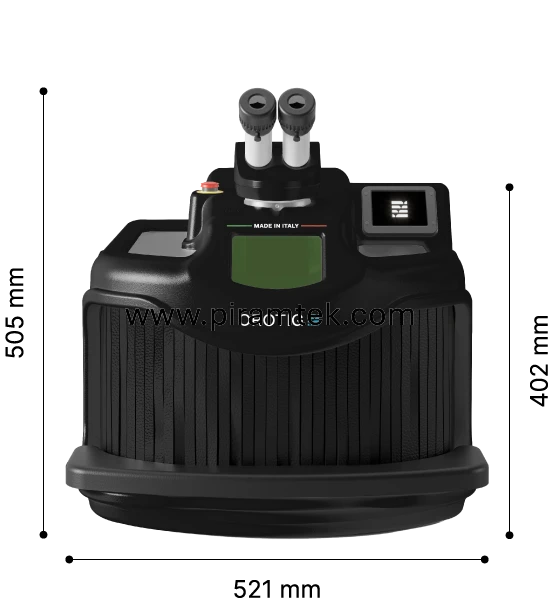

Orotig Midi-Tech 45 Joule is a compact and high-precision professional laser welding machine designed for jewelers. It is an ideal solution for fast and clean welding on gold, silver, and platinum.
The Orotig Midi-Tech 45 Joule laser welding machine is a compact professional laser welding system manufactured exclusively for the jewelry industry. With 45 Joules of pulse energy and 5.6 kW peak power, it delivers precise and clean welding on gold, silver, platinum, and precious metal alloys.
The machine’s Energy Tune feature automatically adjusts the power according to the metal type and spot diameter being welded, reducing the margin of error for inexperienced users while providing fast and repeatable results for professional welders.
Ideal for small workshops and jewelers, the Orotig Midi-Tech offers high performance in bracelet repairs, chain soldering, stone-setting applications, micron-precision welding, and fine-detail jewelry work.
Orotig Midi-Tech 45 J is an optimal solution for small tasks and repair works.

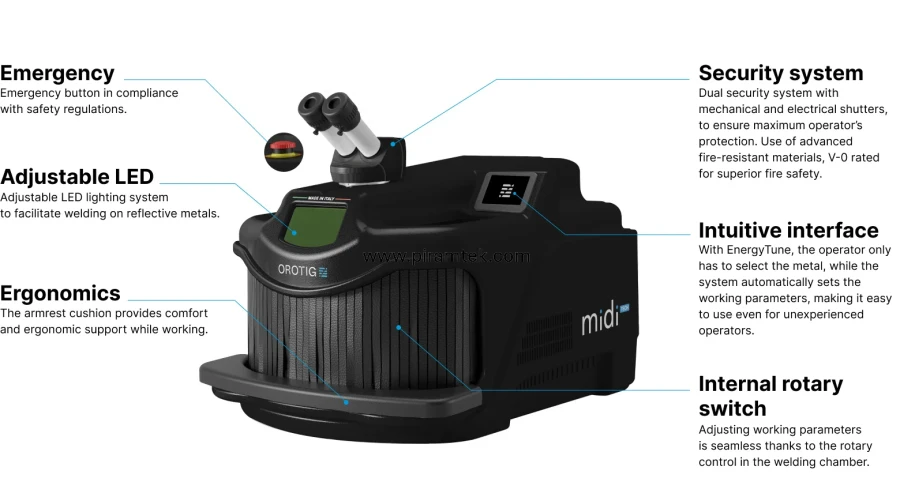

✔ Automatic welding adjustment with Energy Tune
Automatically sets its own parameters based on the metal type, offering easy and safe operation even for new users.

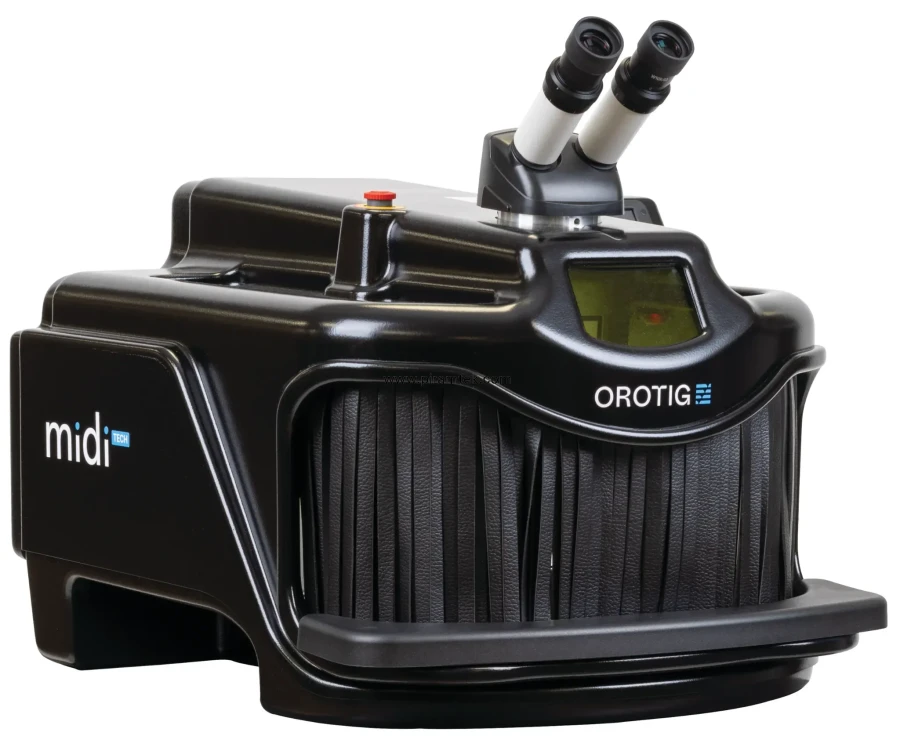

✔ Compact and lightweight design (27 kg)
Fits on any jeweler’s bench; ideal for small workshops.
✔ Micron-level precision
With a 0.2 mm spot diameter, it offers a major advantage in stone settings, fine chain links, and delicate welding areas.
✔ Clean, fast welding with minimal thermal impact
Reduces the risk of stone loss, prevents discoloration, and does not damage the structure of the product.
| Feature | Value |
|---|---|
| Laser Type | Nd:YAG – 1064 nm |
| Pulse Energy | 45 Joule |
| Peak Power | 5.6 kW |
| Pulse Duration | 0.1 – 8 ms |
| Pulse Frequency | 0 – 8 Hz |
| Spot Diameter | 0.2 – 1.5 mm |
| Average Power | 30 W |
| Cooling | Liquid cooling + air channels |
| Power Supply | 115–230V AC, 50/60Hz |
| Weight | 27 kg |
| Observation System | Microscope + LED illumination |
| Application Area | Jewelry – repair and production of gold, silver, platinum, and precious metals |
